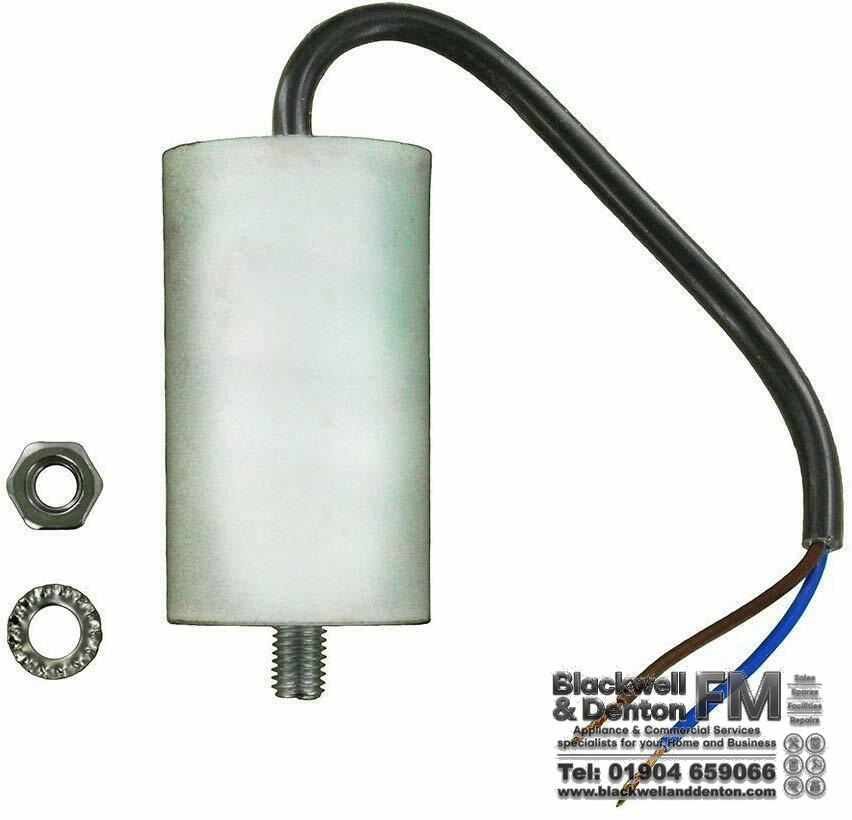

Universal Capacitor (60uF / 60MFD, 450VAC) with 21cm Cable Connectors
Ref BD-007143
Motor Run Capacitors Spares
Universal 60µF motor run capacitor with a pre-wired twin-core cable, suitable for compatible motors and appliances requiring the same electrical rating, dimensions and connection type. Designed for de
Details
Universal 60µF motor run capacitor with a pre-wired twin-core cable, suitable for compatible motors and appliances requiring the same electrical rating, dimensions and connection type. Designed for dependable motor running performance, the robust moulded plastic case is self-extinguishing to UL94 V-2 and includes an M8 fixing stud for secure installation. Technical specifications • Capacitance: 60µF / 60MFD • Capacitance tolerance: ±5% • Rated voltage: 450V AC • Operating range: 400–500V AC • Frequency: 50–60Hz • Case size: 50 × 117mm • Fixing stud: M8 thread, 10mm long • Operating temperature: -25°C to +85°C • Cable: twin-core brown and blue, approximately 250mm long • Cable conductor: Class 5 copper wire • Condition: New Important: Capacitors must be matched by capacitance, voltage, dimensions and connection type. Please compare these specifications with the original component before ordering. Installation should be completed safely by a suitably competent person.
