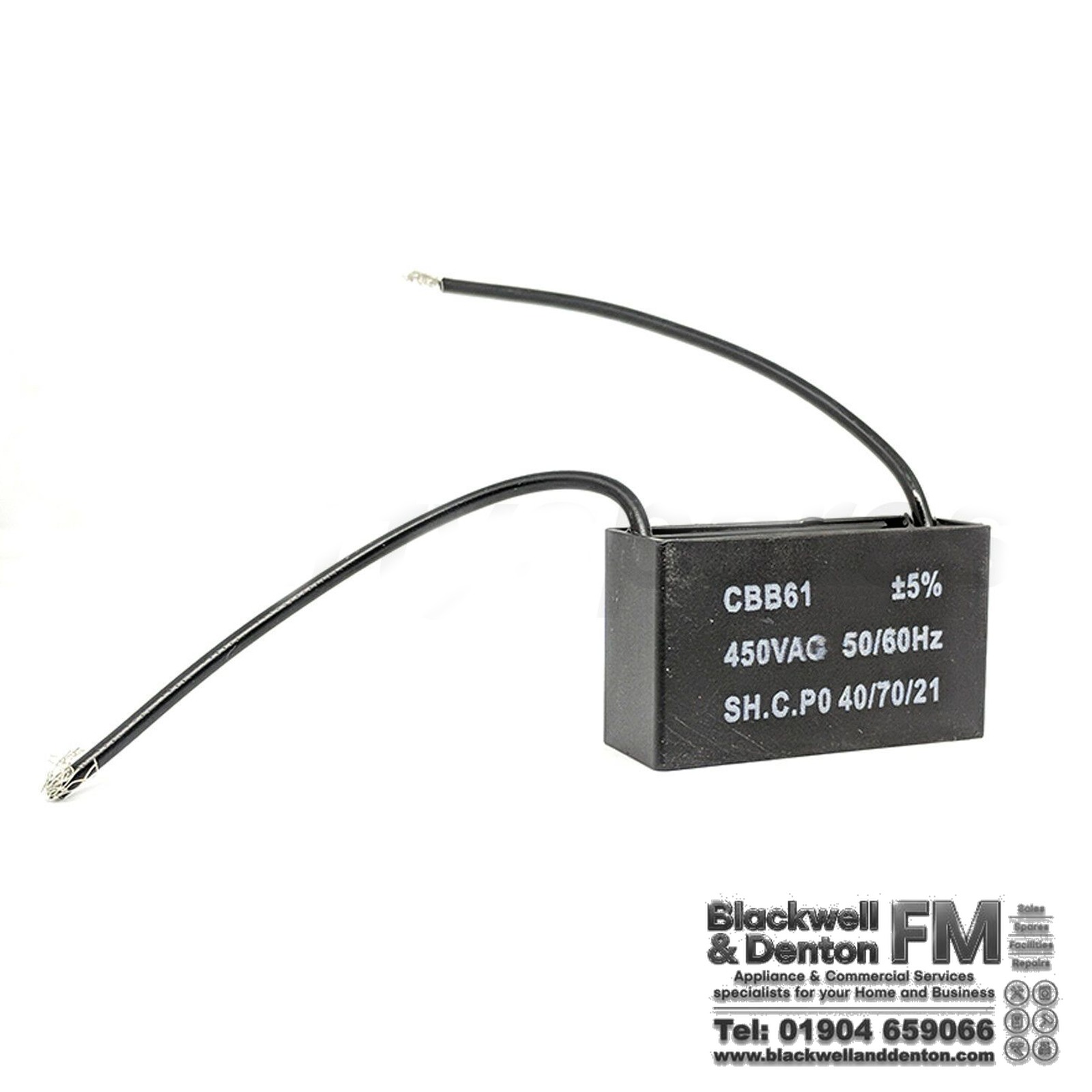

CBB61 AC450V 4μF, 2μF, 1.5uF μF Wired Motor Run Capacitor Replacement Black
Ref BD-002719
Appliance Spares
CBB61 AC motor run capacitor can be used in an electric motor under lower starting electric current, can obtain higher torque. CBB61 AC motor run capacitor is widely applied in single phase. CBB61 AC
Details
CBB61 AC motor run capacitor can be used in an electric motor under lower starting electric current, can obtain higher torque. CBB61 AC motor run capacitor is widely applied in single phase. CBB61 AC motor run capacitor features square shape 2-wired mounting, metalized polypropylene film Features: • Designed with 450V AC rated voltage • Non-polarized, easy to connect with 2-wire, great for motor starting • Suitable for starting and running for monophase motors with power supply AC 50/60Hz • Application: ceiling fan, exhaust fan, dynamotor, home appliance etc. Specifications: Product Name Capacitor Model CBB61 Type Polypropylene Film Capacitor Material(External) Plastic Rated Capacitance uF 1.5, 2.0, 4.0 Tolerance ±5% Rated Frequency 50/60Hz Rated Voltage 450V AC Size 35 x 22 x 13mm/1.4" x 0.8" x 0.5"(L*W*T) Mounting Hole Diameter 0.45cm/0.177" Cable Length 10cm/4" Main Colour Black
